Replaces: 150W HID
Part No: RK-SM-03-MEN-C120-750-YM-415

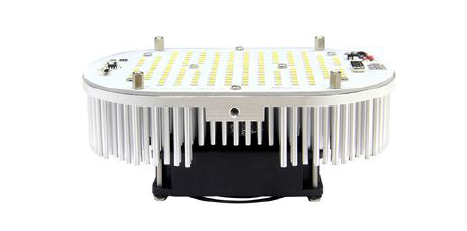

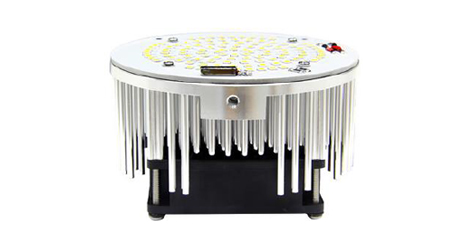

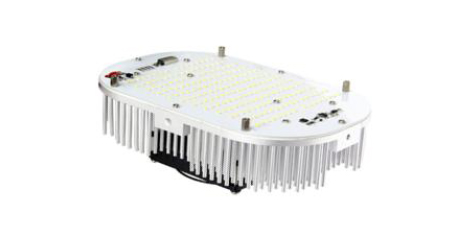

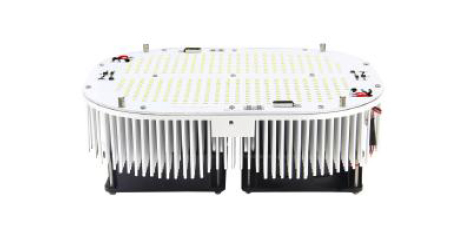

30W LED Retro Unit – 4,200 Lumens
Description
| SPECIFICATIONS | |||||||
|---|---|---|---|---|---|---|---|
| Type | LED Retro Kits | ||||||
| Wattage | 30W | ||||||
| CRI | 75+ | ||||||
| Lumens | 4,200 | ||||||
| Lumen Per Watt | 140 | ||||||
| Color Temperature | 3000K | 4100K | 5000K | 6000K | Turtle Safe Amber | ||||||
| Beam Angle | deg | ||||||
| Optics | 120° Standard | 60° Special Order | ||||||
| Life Hours | 100,000 | ||||||
| Replaces | up to 150W HID | ||||||
| Working Voltage | 100-277 | 347-480 VAC | ||||||
| Frequency | 50/60 hz | ||||||
| Operating Temperature | -30°C to +45°C | ||||||
| Dimmable | No | ||||||
| Dimensions | 4.6″ L x 4.6″ W x 1.9″ H | ||||||
| Net Weight | .35 kg | ||||||
| Housing | IP65 | ||||||
| Mounting | Yoke | ||||||
| Warranty | 5 years on driver, 10 years on head | ||||||
| Model | Wattage | Replaces HID | Lumens |
|---|---|---|---|
| RK-SM-03-MEN-C120-750-YM-415 | 30W | 150W | 4,200 |
Features:
- This 30 Watt LED Retro unit wins in life rating, wattage savings, payback, CRI, and the ability to retrofit in 99% of existing HID fixtures.
- IP65 for outdoor use
- L70 of 70,000+ hours long life low maintenance
- The ability to retrofit in to almost any HID fixture up to 150 Watts HID
- Over temperature protection
- Short Circuit / Over Current / Over Voltage / Over Temperature Protection With Auto Recovery
Options:
- mounting bracket (Yoke)
- dimmable driver
- 480 VAC
- turtle safe amber 590 nM (special order)
